Carbon Fiber Flat Strips for Custom Projects — CFW-3262
Flat carbon fiber strips shown as a reference for cut-to-size or drawing-based work. Specify whether the order requires plain strips or additional machining.
Enquiry reference: CFW-3262
Made to order · Minimum order: 1 unit
All products are supplied by quotation. Send the product reference, specification, quantity and delivery destination for a tailored quote.
Description
Product description
Carbon Fiber Flat Strips for Custom Projects — CFW-3262. A flat-profile component enquiry based on the listed shape and material. The outline, holes, slots and mating interfaces must be matched to the current drawing before production is agreed.
Listed configuration: Product form: Flat strip reference; Material: Carbon fiber laminate.
PRODUCT DETAILS & MANUFACTURING
A closer look
Explore the structural details and manufacturing stages relevant to this product family. The illustrations explain construction; the product gallery and agreed specification define the selected model.

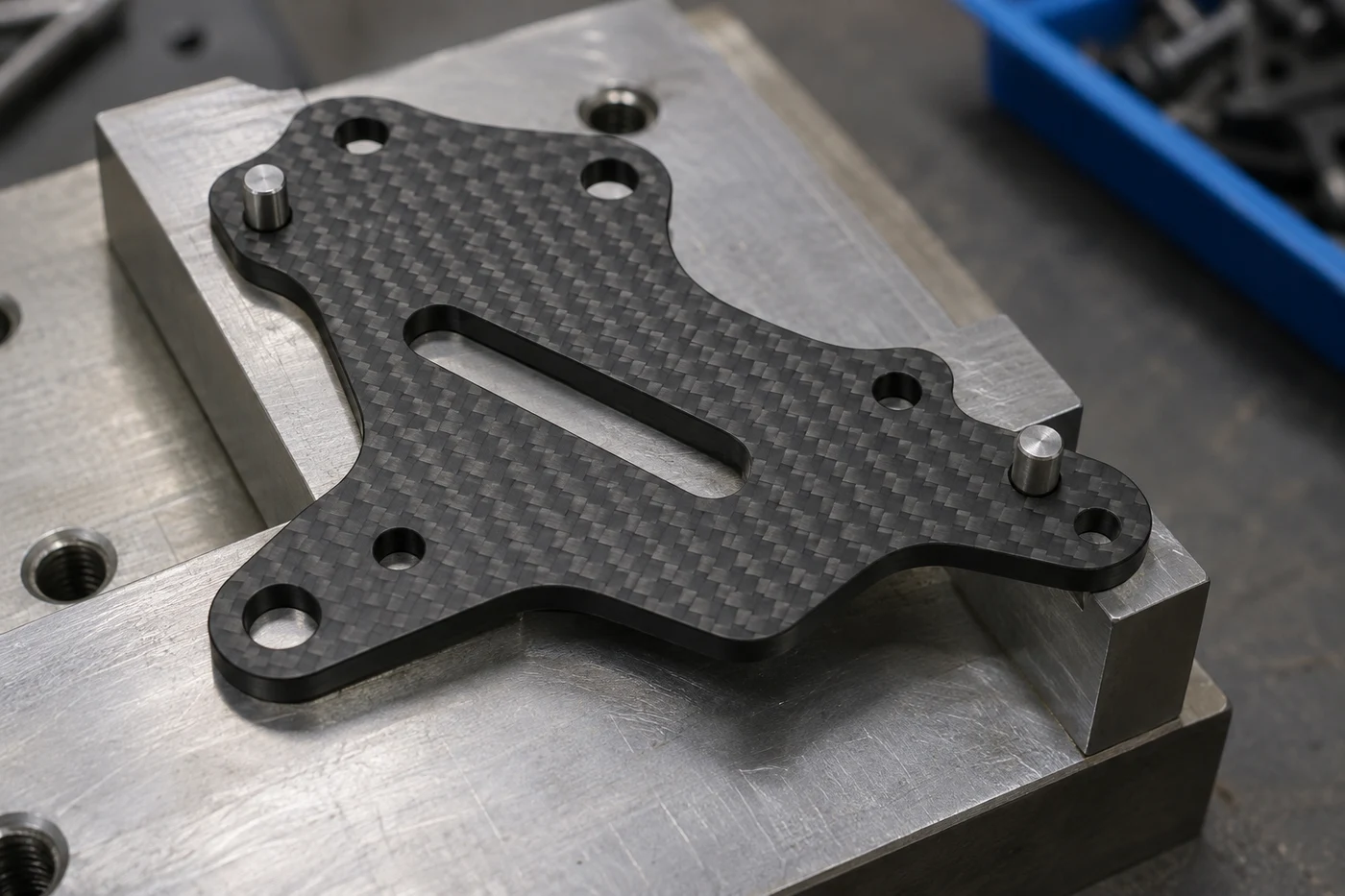

Holes, slots & custom profiles
Custom holes, slots and outlines for positioning and assembly.
AI-generated structural illustration; not a photograph of this exact model.
Manufacturing overview
- Review the drawing
Review laminate, thickness, outline and hole or slot requirements against the drawing.
- Locate & clamp
Support and secure the stock while keeping the tool path clear.
- Machine contours & features
Machine the required features using tooling and methods suited to the composite.
- Finish edges & inspect
Finish the edges and check critical dimensions and assembly interfaces.
View the illustrated manufacturing process
PRODUCT SPECIFICATION
Configuration & supply details
| Enquiry reference | CFW-3262 |
|---|---|
| Product form | Flat strip reference |
| Material | Carbon fiber laminate |
| Drawing and dimensions | To the agreed component drawing |
| Supply unit | Individual components or specified sets |
| Minimum order quantity | 1 unit |
| Ordering | Custom quotation; no fixed public price |
Send the drawing revision, material and thickness requirements, critical features and required quantity. Identify which parts are included if your enquiry covers a set.
What to specify
- Plate thickness and laminate construction.
- Outline, holes, slots and assembly interfaces.
- Critical dimensions, edge finish and required quantities.
For an accurate quotation
Define width, length, thickness and any holes, slots or edge features required.
Include the required quantity and destination. Our team will confirm the agreed specification and scope of supply with the quotation.
Mounting-fixture concept
The image shows one way flat cut components can be combined in a small fixture. It is an application illustration rather than a kit supplied under this product reference.
Quote reference CFW-3262 when sending your requirements.
Additional information
| Product form | Flat strip reference |
|---|---|
| Material | Carbon fiber laminate |
