Arrow Insert Components — CFW-7902
View the CFW-7902 arrow insert component reference. Confirm the product specification and request a CarbonFiberWorld quotation. Minimum order: 1 unit.
Enquiry reference: CFW-3410
Made to order · Minimum order: 1 unit
All products are supplied by quotation. Send the product reference, specification, quantity and delivery destination for a tailored quote.
Description
Product description

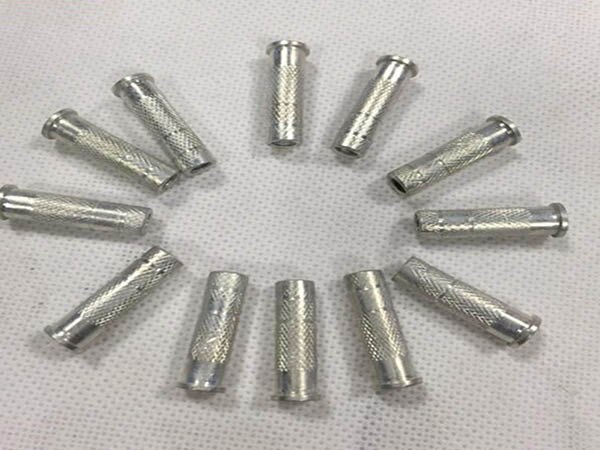

Arrow Insert Components — CFW-7902. This listing covers the identified fitting component rather than a complete arrow. Confirm the product reference and its matching assembly before an order is agreed.
Listed configuration: Product type: Arrow fitting components; Fit: To the specified shaft and mating component.
PRODUCT DETAILS & MANUFACTURING
A closer look
Explore the structural details and manufacturing stages relevant to this product family. The illustrations explain construction; the product gallery and agreed specification define the selected model.
Insert shoulder & bore
Shoulders, bores and fitting ends on small metal arrow components.
AI-generated structural illustration; not a photograph of this exact model.
Manufacturing overview
- Prepare blanks
Confirm material and blank dimensions; this is a metal-machining example.
- Machine the profile
Produce the stepped exterior profile using the specified machining method.
- Finish bores & details
Finish the specified bores, grooves or threads and remove burrs.
- Check component fit
Check dimensions and compatibility with the shaft and mating components.
View the illustrated manufacturing process
PRODUCT SPECIFICATION
Configuration & supply details
| Enquiry reference | CFW-3410 |
|---|---|
| Product type | Arrow fitting components |
| Fit | To the specified shaft and mating component |
| Minimum order quantity | 1 unit |
| Ordering | Custom quotation; no fixed public price |
Identify the required component and provide the existing product or supplier specification for fit confirmation. Confirm the quantity and packing separately.
What to specify
- Shaft inside diameter and fitting dimensions.
- Component material and required part type.
- Individual piece quantities and packaging.
For an accurate quotation
Send the shaft dimensions or model and identify the exact insert or pin type. Include a component drawing when available.
Include the required quantity and destination. Our team will confirm the agreed specification and scope of supply with the quotation.
Target archery equipment context
The image gives general sporting context for the component. The illustrated complete equipment is not included and does not establish a compatible assembly.
Quote reference CFW-3410 when sending your requirements.
Additional information
| Product type | Arrow components |
|---|
