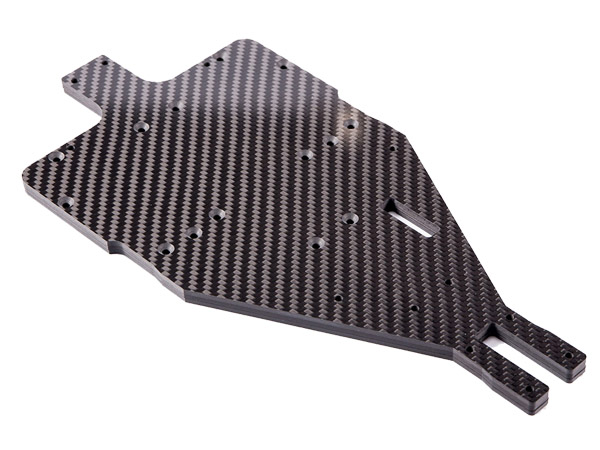

Carbon Fiber RC Car Frame Plate — CFW-3326
A shaped frame plate for an RC car project. The product image is a component reference; identify any additional plates or hardware required.
Enquiry reference: CFW-3326
Made to order · Minimum order: 1 unit
All products are supplied by quotation. Send the product reference, specification, quantity and delivery destination for a tailored quote.
Description
Product description
Carbon Fiber RC Car Frame Plate — CFW-3326. This component is presented for a model-car project. Treat the existing product image and listed form as a starting point, then confirm the chassis layout, interfaces and exact scope of supply for your model.
Listed configuration: Product form: RC car frame plate; Material: Carbon fiber laminate.
PRODUCT DETAILS & MANUFACTURING
A closer look
Explore the structural details and manufacturing stages relevant to this product family. The illustrations explain construction; the product gallery and agreed specification define the selected model.
Chassis slots & mounting areas
The chassis outline, elongated slots and mounting areas in close view.
AI-generated structural illustration; not a photograph of this exact model.
Manufacturing overview
- Review the drawing
Review laminate, thickness, outline and hole or slot requirements against the drawing.
- Locate & clamp
Support and secure the stock while keeping the tool path clear.
- Machine contours & features
Machine the required features using tooling and methods suited to the composite.
- Finish edges & inspect
Finish the edges and check critical dimensions and assembly interfaces.
View the illustrated manufacturing process
PRODUCT SPECIFICATION
Configuration & supply details
| Enquiry reference | CFW-3326 |
|---|---|
| Product form | RC car frame plate |
| Material | Carbon fiber laminate |
| Drawing and dimensions | To the agreed component drawing |
| Supply unit | Individual components or specified sets |
| Minimum order quantity | 1 unit |
| Ordering | Custom quotation; no fixed public price |
Confirm the model interface, part outline, hole positions, material and plate thickness. Do not infer vehicle compatibility from the application illustration.
What to specify
- Plate thickness and laminate construction.
- Outline, holes, slots and assembly interfaces.
- Critical dimensions, edge finish and required quantities.
For an accurate quotation
Confirm whether the enquiry is for one plate or a complete specified component set.
Include the required quantity and destination. Our team will confirm the agreed specification and scope of supply with the quotation.
Radio-controlled model car
The application image shows a generic model car, not a compatible vehicle supplied or certified for this component. A part fit check requires the actual chassis drawing and mounting pattern.
Quote reference CFW-3326 when sending your requirements.
Additional information
| Product form | RC car frame plate |
|---|---|
| Material | Carbon fiber laminate |
