Custom Carbon Fiber CNC-Cut Parts — CFW-2795
Custom CNC-cut carbon fiber profiles from customer drawings. Identify part revisions, thicknesses, critical features, edge requirements and quantities.
Enquiry reference: CFW-2795
Made to order · Minimum order: 1 unit
All products are supplied by quotation. Send the product reference, specification, quantity and delivery destination for a tailored quote.
Description
Product description
Custom Carbon Fiber CNC-Cut Parts — CFW-2795. A flat-profile component enquiry based on the listed shape and material. The outline, holes, slots and mating interfaces must be matched to the current drawing before production is agreed.
Listed configuration: Product form: Custom flat profiles; Material: Carbon fiber laminate.
PRODUCT DETAILS & MANUFACTURING
A closer look
Explore the structural details and manufacturing stages relevant to this product family. The illustrations explain construction; the product gallery and agreed specification define the selected model.

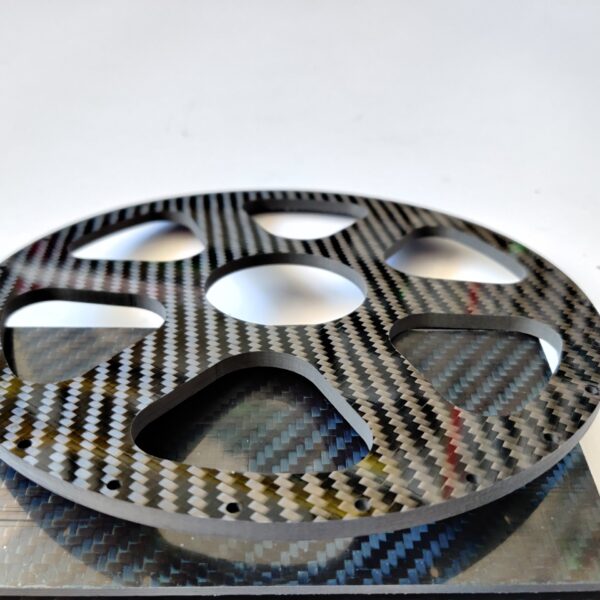

Holes, slots & custom profiles
Custom holes, slots and outlines for positioning and assembly.
AI-generated structural illustration; not a photograph of this exact model.
Manufacturing overview
- Review the drawing
Review laminate, thickness, outline and hole or slot requirements against the drawing.
- Locate & clamp
Support and secure the stock while keeping the tool path clear.
- Machine contours & features
Machine the required features using tooling and methods suited to the composite.
- Finish edges & inspect
Finish the edges and check critical dimensions and assembly interfaces.
View the illustrated manufacturing process
PRODUCT SPECIFICATION
Configuration & supply details
| Enquiry reference | CFW-2795 |
|---|---|
| Product form | Custom flat profiles |
| Material | Carbon fiber laminate |
| Drawing and dimensions | To the agreed component drawing |
| Supply unit | Individual components or specified sets |
| Minimum order quantity | 1 unit |
| Ordering | Custom quotation; no fixed public price |
Send the drawing revision, material and thickness requirements, critical features and required quantity. Identify which parts are included if your enquiry covers a set.
Published configuration & fit checks
Supply reference: custom flat CNC profiles.
The images show different geometry references, not a single dimensioned SKU. Define each part number, drawing revision, material thickness and quantity separately.
Identify critical datums and features on the drawing. Agree edge acceptance and any cosmetic faces; specify whether inserts or assembly operations are included.
Define drawing acceptance and requested inspection records →
For quotation, include quantity, destination, finish and any critical fit. Minimum order: 1 unit. Sample timing and inspection documents are confirmed for the selected configuration.
Mounting-fixture concept
The image shows one way flat cut components can be combined in a small fixture. It is an application illustration rather than a kit supplied under this product reference.
Quote reference CFW-2795 when sending your requirements.
Additional information
| Product form | Custom flat profiles |
|---|---|
| Material | Carbon fiber laminate |
