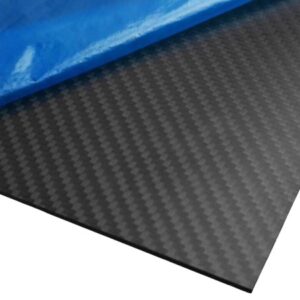

Carbon Fiber Sheet / Plate — 400 × 500 × 3.0 mm
Nominal panel size: 400 × 500 × 3.0 mm. Flat carbon fiber laminate for custom panels, spacers or subsequent machining. Select the required thickness and panel dimensions, then confirm the laminate and surface finish for the intended application.
Enquiry reference: CFW-3144
Made to order · Minimum order: 1 unit
All products are supplied by quotation. Send the product reference, specification, quantity and delivery destination for a tailored quote.
Description
Product description
Carbon Fiber Sheet / Plate — 400 × 500 × 3.0 mm. This flat composite sheet or plate can be discussed as stock for a panel or a further-cut component. Select the nominal size and thickness together with the required surface finish and final part drawing.
Listed configuration: Nominal length × width: 400 × 500 mm; Nominal thickness: 3.0 mm.
PRODUCT DETAILS & MANUFACTURING
A closer look
Explore the structural details and manufacturing stages relevant to this product family. The illustrations explain construction; the product gallery and agreed specification define the selected model.

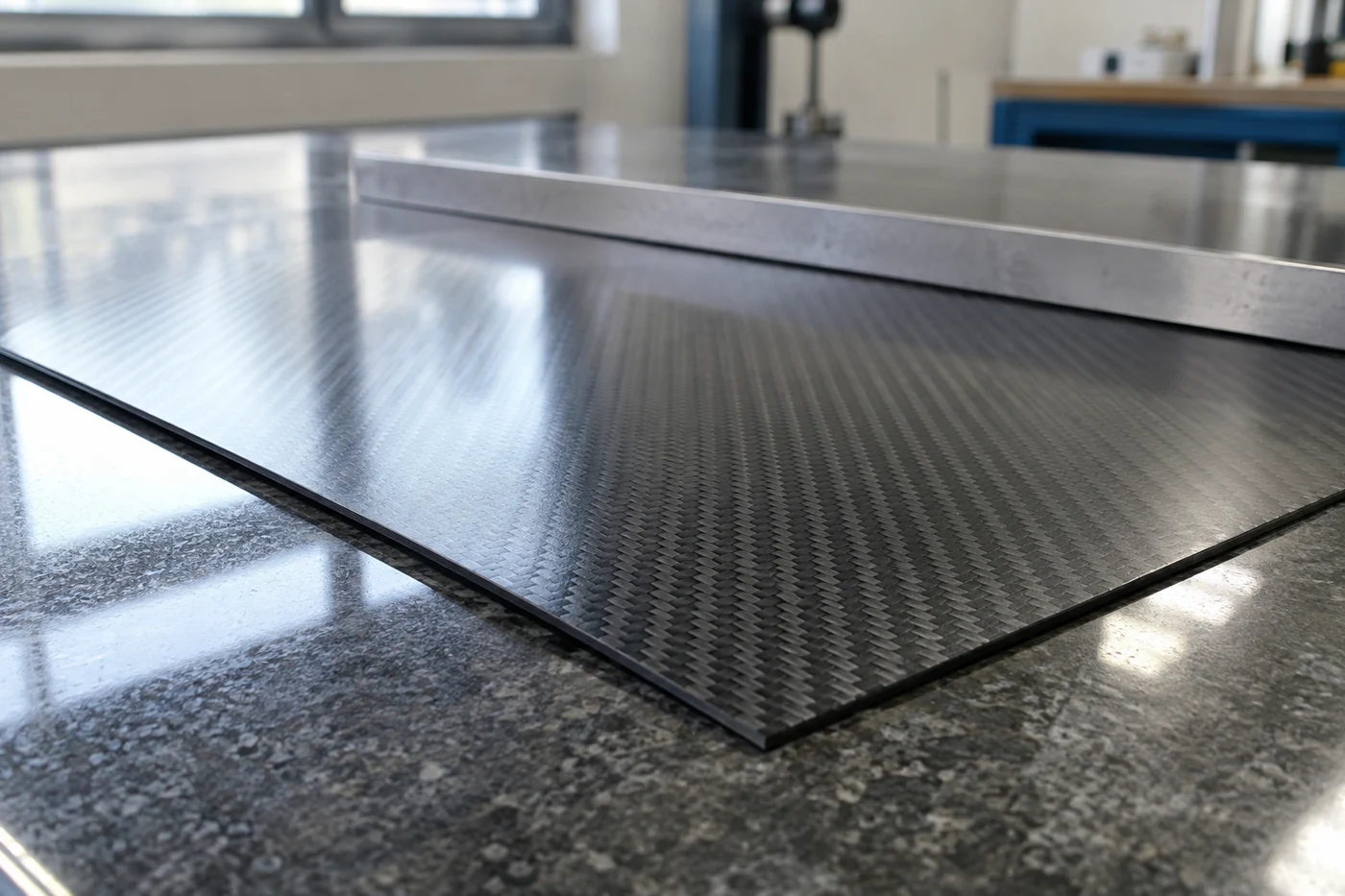

Sheet face & thin edge
A clear view of the sheet face, thickness and cut edge.
AI-generated structural illustration; not a photograph of this exact model.
Manufacturing overview
- Prepare material
Cut the reinforcement to suit the panel dimensions and laminate specification.
- Stack the plies
Stack the plies in the specified order and orientation; the illustrated count is schematic.
- Consolidate & cure
The illustration shows a press-consolidation example; the process depends on the material system.
- Trim & inspect
Trim the panel and check thickness, overall dimensions, surface condition and edges.
View the illustrated manufacturing process
PRODUCT SPECIFICATION
Configuration & supply details
| Enquiry reference | CFW-3144 |
|---|---|
| Nominal length × width | 400 × 500 mm |
| Nominal thickness | 3.0 mm |
| Surface and tolerances | To the agreed order specification |
| Minimum order quantity | 1 unit |
| Ordering | Custom quotation; no fixed public price |
Confirm panel dimensions, thickness, surface condition and whether cutting or holes are required. Request any critical tolerances and acceptance checks with the enquiry.
What to specify
- Length, width, thickness and required quantity.
- Laminate construction and working conditions.
- Visible-face finish and any holes, profiles or edge machining.
For an accurate quotation
Send the required panel dimensions and finish. If the plate will be machined, include the part drawing and any critical laminate or inspection requirements.
Include the required quantity and destination. Our team will confirm the agreed specification and scope of supply with the quotation.
Equipment cover concept
The illustration shows a panel used as an equipment cover. Suitability depends on your panel geometry, mounting method and service conditions; fittings and the enclosure are not part of the sheet listing.
Quote reference CFW-3144 when sending your requirements.
Additional information
| Product form | Flat sheet / plate |
|---|---|
| Face appearance | Black |
