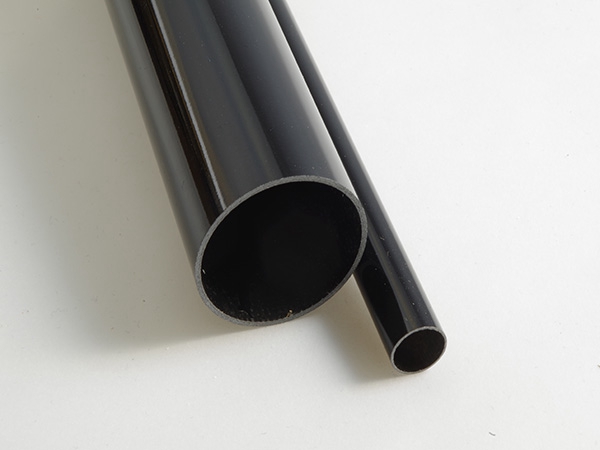

Unidirectional Carbon Fiber Round Tube — CFW-3094
Discuss the CFW-3094 unidirectional carbon fiber round tube. Send dimensions, intended use and quantity for a custom quote. Minimum order: 1 unit.
Enquiry reference: CFW-3094
Made to order · Minimum order: 1 unit
All products are supplied by quotation. Send the product reference, specification, quantity and delivery destination for a tailored quote.
Description
Product description
Unidirectional Carbon Fiber Round Tube — CFW-3094. A round hollow section for a drawing-led component or assembly project. Start with the listed outside and inside dimensions, then define the finished length, connection details and surface requirement.
Listed configuration: Profile: Round.
PRODUCT DETAILS & MANUFACTURING
A closer look
Explore the structural details and manufacturing stages relevant to this product family. The illustrations explain construction; the product gallery and agreed specification define the selected model.
Axial texture & cut end
A close view of axial fibres and the trimmed end of a unidirectional carbon tube.
AI-generated structural illustration; not a photograph of this exact model.
Manufacturing overview
- Cut reinforcement
Prepare reinforcement to the required pattern; orientation and ply count depend on the specification.
- Wrap the mandrel
Wrap the prepared reinforcement around the mandrel that defines the bore.
- Consolidate & cure
Consolidate the wrap and cure using the schedule required by the selected resin system.
- Demould, trim & inspect
Remove the mandrel, trim the ends and check the finished dimensions and surface.
View the illustrated manufacturing process
PRODUCT SPECIFICATION
Configuration & supply details
| Enquiry reference | CFW-3094 |
|---|---|
| Profile | Round |
| Fiber appearance | Unidirectional reference; final layup to specification |
| Length and tolerances | To the agreed order specification |
| Finish and construction | Specify weave, surface appearance and load direction |
| Minimum order quantity | 1 unit |
| Ordering | Custom quotation; no fixed public price |
Confirm finished length, required fits, wall construction and intended loading. Listed dimensions are nominal references, not a tolerance or load-rating declaration.
What to specify
- Finished length, section dimensions and critical fits.
- Fiber orientation, wall construction and working conditions.
- Matte or gloss appearance, color and secondary machining.
For an accurate quotation
Send the required section, length, quantity and application. For shaped parts, include a dimensioned drawing or marked-up images showing interfaces and any bends.
Include the required quantity and destination. Our team will confirm the agreed specification and scope of supply with the quotation.
Camera supports and positioning fixtures
The scene shows how round sections can be incorporated into a small positioning assembly. It illustrates the role of tube geometry and end connections; the depicted clamps and equipment are not included with this listing.
Quote reference CFW-3094 when sending your requirements.
Additional information
| Profile | Round |
|---|
